PCB Fabrication

Zero Mistake Solutions produces the common PCBs and can cover most of the demand of our clients in various fields, and support ordering quantity from small to large.

    Most of the time, we really have headaches from some PCB factories. When our project is still small, they are not interested in working with us at all and don't even like to offer a quote.
    We heard about some quick turn PCB manufacturer which can upload gerber files and get an easy quote online, but sometimes the price is not final one after we confirmed the order, what's more, we have no idea how to choose when we saw many of the specifications choices, we just want someone who can help us with professional advice and don't leave the problem to us.

PCB(also called Printed Circuit Board) is the basic components of electornics production but different PCB factories would have its mode and advantages. Especially when the qty is small for a startup company, you maybe hard to find a factory which could support you from prototyping stage to mass production stage. ZMS have been working with different scale PCB factories and easy to match the suitable quality for our clients by checking their design complexities, our client dosen't need to spend several monthes to verify the quality and services from different manufactuers.

ZMS engineers will take care of checking your gerber files and specifications, quote you a proper price. Once order confirmed, ZMS engineers will help with panelized your PCB according to the best use ratio, you could feel free to drop the fresh files from your design engineers and ZMS will take care of all.

What's more importantly, ZMS always shares an EQ (engineer query) form for you to double confirm the design issues with designer, which is quite friendly for those company out-source their design job.


ZMS PCB Lead Time for Reference

PCB Manufacturing Lead Time for Reference
Prototyping to small Volume
1-2 Layers
3-5 Days
4 Layers
7-10 Days
6-8 Layers
8-12 Days
10-16 Layers
15-18 Days
Medium to   Mass Production
1-2 Layers
7-10 Days
4 Layers
10-12 Days
6-8 Layers
12-15 Days
10-16 Layers
15-20 Days


  • What kind of PCB manufacturers you are working with?

    According to client's design, we work with different types of PCB manufacturers: different scales from prototyping to mass production; different field from consumer to industry; and  different materials for various PCB types. We will choose the right manufacturer base on our clients' budget and quality demand.


  • We can also work directly with the PCB manufacturer, what are the advantages of choosing to work with ZMS?

    As an EMS manufacturer, we have very stable and deep cooperation with our local manufacturer, so we might be able to get a much better cost than they quote for a foreigner customer directly. Eg. Working with a factory with a million PCBs a year could get totally different prices and services than working with them with 1000 PCBs a year. So if you don't have a million PCBs demand yet, come and get the best services and price from ZMS first.

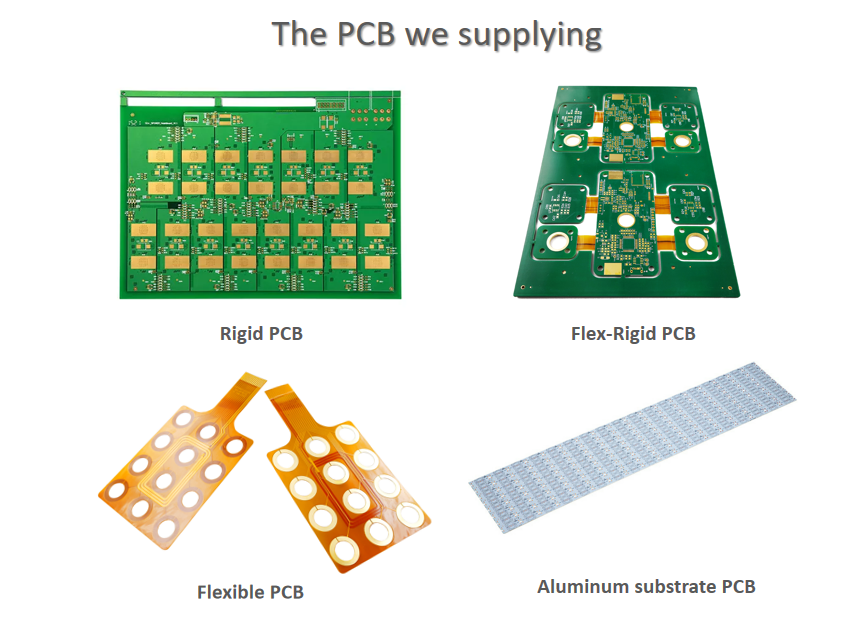

  • What is the PCB type does Zero Mistake Solutions mainly supply?

    • Single-Side PCB

    • Double-Side PCB

    • Munti-layer PCB

    • Rigid PCB

    • Flex PCB (FPC)

    • Rigid-Flex PCB

    • Aluminum PCB


  • What is the process if I want to make a Printed Circuit board (PCB) ?

    • PCB Design - Firstly look for a circuit designer to create schematics according to your idea, make sure the functions are able to be achieved by the electric components and theory. Secondly, show the circuit engineer to work on the layout based on your product structure. (If you don't have the structure yet, work out the structure with a structure engineer first.) Thirdly, the engineer will generate gerber files from the design for the manufacturing process. Congratulations! You already have something to show ZMS the PCB you want to make.

    • PCB Production - After the ZMS engineer checked all the specifications and confirmed our capabilities totally meet the requirements, the factory will start preparing raw materials, preparing imaging and printing jigs, and then go into these process:  Cutting, drilling, laminations, etching, plating, solder mask, surface finished, silkscreening, baking, V-scoring and packing. Testing will proceed between each step.

    In this way, your idea will become a real object, Zero Mistake Solutions is pround to join your project and watch it grow.
